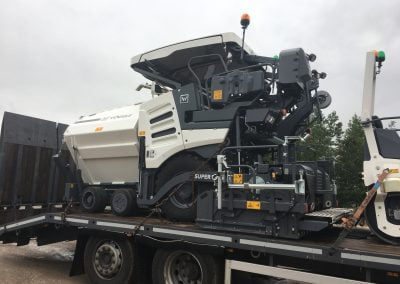

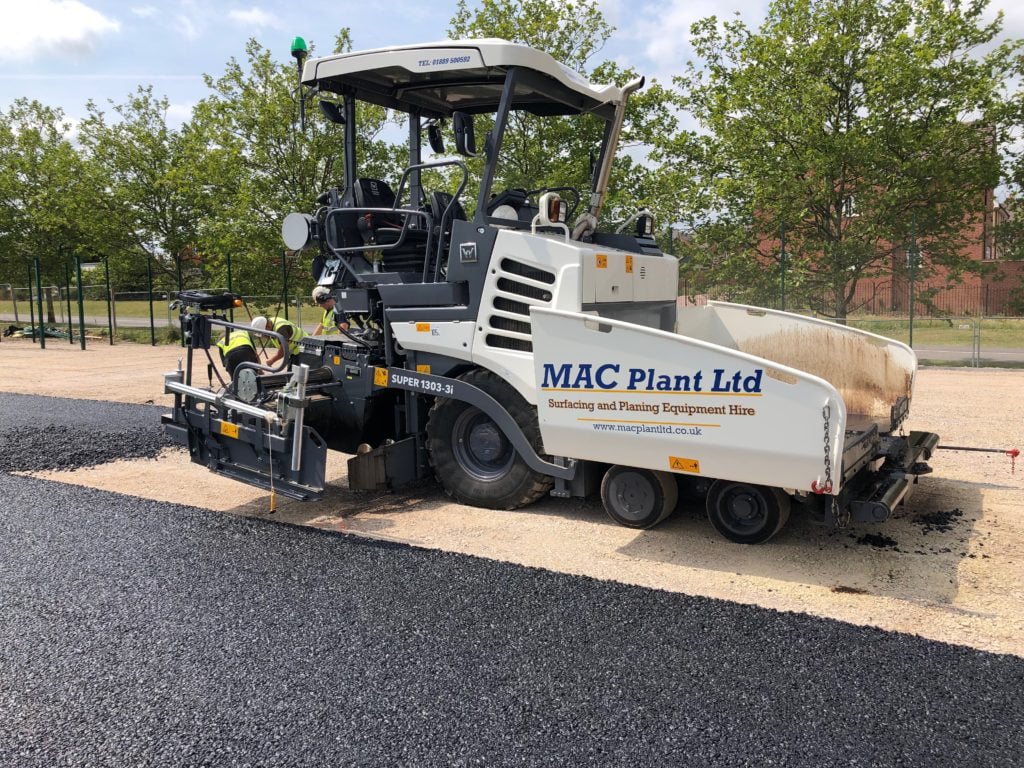

VOGELE 1303-3i Wheeled Paver
The wheeled SUPER 1303-3 stands out through an extremely compact design and excellent manœuvrability. A basic width of 1.85m and an overall length of just 4.95m make the paver ideal for jobs in confined spaces.
Coming with the AB 340 Extending Screed for pave widths up to 4.5m, the SUPER 1303-3 conveniently handles medium-sized jobs, too. Available with dual grade laser levelling equipment.
- Maximum pave width 4.5m
- Laydown rate up to 250 tonnes/h
- Transport width just 1.85m
- Outside turning radius 3.8m with new “Pivot Steer” function
- Powerful engine rated at 74.4kW
- Combines with AB 340 Extending Screed in TV version (with tamper and vibrators)
- Electric screed heating
- ErgoPlus 3 with a number of additional ergonomic and functional advantages
Details
Vogele 1303-3i Wheeled Paver Details

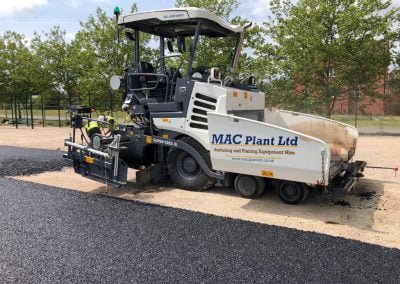

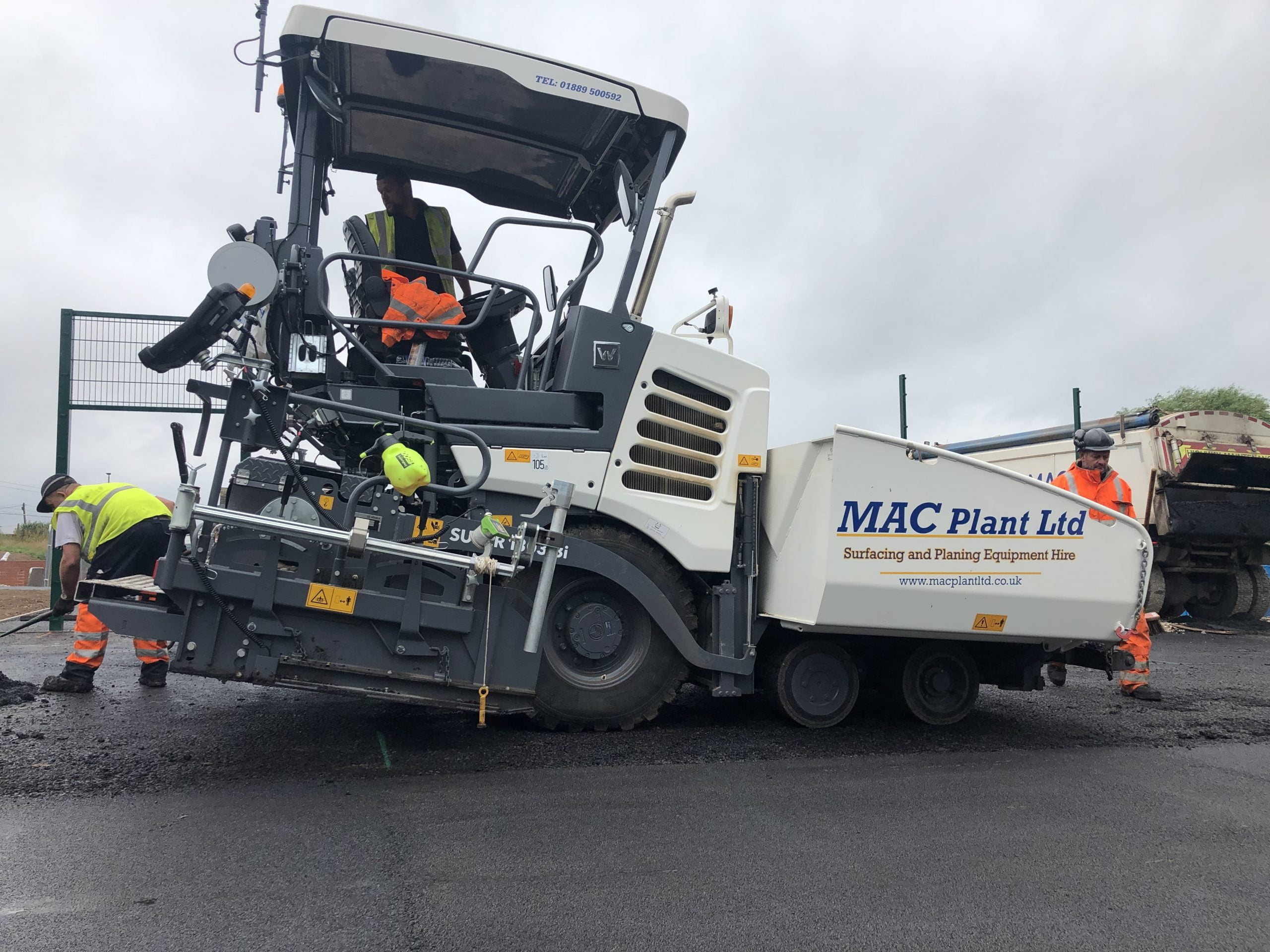

Compact size, big performance
Minor municipal roads, farm tacks, foot and cycle paths or small to medium-sized areas – if this is the kind of paving jobs you need to get done, then the VÖGELE SUPER 1303-3 joins your game.
This cutting-edge paver features extremely compact design and superb manœuvrability. A basic width of 1.85m and an overall length of just 4.95m make the SUPER 1303-3 ideal for jobs in confined spaces.
The VÖGELE ErgoPlus 3 operating system has been supplemented by numerous ergonomic and functional features. The paver operator‘s console, for example, comes with a large colour display which provides brilliant readability even in poor lighting conditions.
Though a compact-size machine, the SUPER 1303-3 stands out through excellent performance due to its perfected overall concept. Powered by a diesel engine rated at 74.4kW, the paver achieves laydown rates up to 250t/h.
Coming with an AB 340 Extending Screed in the TV version for pave widths up to 4.5m, the SUPER 1303-3 conveniently handles medium-sized job sites as well.

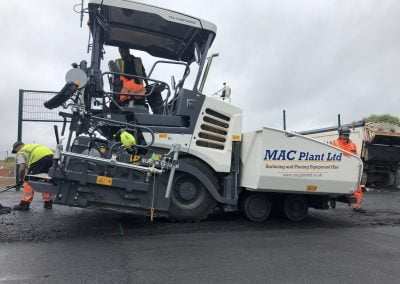

The right paver for jobs in tight spaces
Compact size, high efficiency: be it extremely cramped job sites out of town or winding city-centre alleyways, the VÖGELE Compact Class pavers feature excellent manœuvrability. They are ideal in all these environments and trump with high performance.
- The very small outside turning radius of only 3.8m makes for an extremely manœuvrable paver and permits easy and fast repositioning even on confined job sites.
- The slim paver design without protruding edges and with a compact, overall length of just 4.95m allow for very easy paving and manœuvring on small job sites.
- For passing through narrow spaces, push-rollers fold up together with the hopper sides.
- The hardtop of glass fibre-reinforced polymer material folds down with effortless ease, thus preparing the paver for transport quickly and easily.
Range of applications of the VÖGELE Compact Class
With their combination of compact dimensions and top performance, road pavers in the VÖGELE Compact Class can handle a wide variety of applications.
Whether it’s a combined footpath and cycle path, a farm track or minor roads and squares, the SUPER 1303-3 is more than up to the task, thanks to its wide range of pave widths from 0.75m to 4.5m and its excellent performance.
The drive concept — Efficiency, performance and low consumption
VÖGELE’s modern drive concept guarantees full power whenever it is needed. Superior technology also makes this Compact Class paver exceedingly economical in everyday use thanks to the intelligent engine management with ECO mode. As a result, fuel consumption and the level of noise emitted by the SUPER 1303-3 are significantly reduced.
With its high tractive power, the wheeled SUPER 1303-3 perfectly combines high paving performance with maximum mobility when travelling.
Modern drive technology
Three main components define the power unit of a SUPER 1303-3: its modern, liquid-cooled diesel engine, a splitter gearbox flanged directly to the engine and a large cooler assembly.
The driving force in this VÖGELE powerpack is its powerful diesel engine. The four-cylinder engine delivers 74.4kW at 2,000rpm. Yet the fuel-saving ECO mode is sufficient for many applications. And even then, the SUPER 1303-3 still has a full 68.7kW at its disposal. Moreover, the machine generates less noise when running at just 1,600rpm.
A large cooler assembly ensures that the power unit always delivers its full output. With innovative air routing and a special fan, temperatures are continually maintained within the optimum range, significantly extending the service life of both the diesel engine and the hydraulic oil. A further advantage is that the machine can operate without difficulty in all climate regions worldwide.
All hydraulic consumers are directly supplied with hydraulic oil via the splitter gearbox. Hydraulic pumps and valves are centrally located, making them optimally accessible for servicing.
The large cooler assembly is made up of four parts. It ensures that engine coolant, charge air, fuel and hydraulic oil are maintained at the optimum temperature.
- Powerful diesel engine rated at 74.4kW.
- ECO mode (68.7kW at 1,600rpm) is sufficient for many paving applications. The engine‘s noise emissions, which are already low, are further decreased when working in ECO mode. In addition, ECO mode reduces fuel consumption and wear.
- A powerful three-phase A.C. generator with generator management controls the output in compliance with the pave width. Heating the compacting systems to operating temperature takes a short time only.
- For hydraulic functions, powerful separate drives are installed, which operate in independent closed loops. This solution allows engine output to be transformed highly efficiently into hydraulic paver performance.

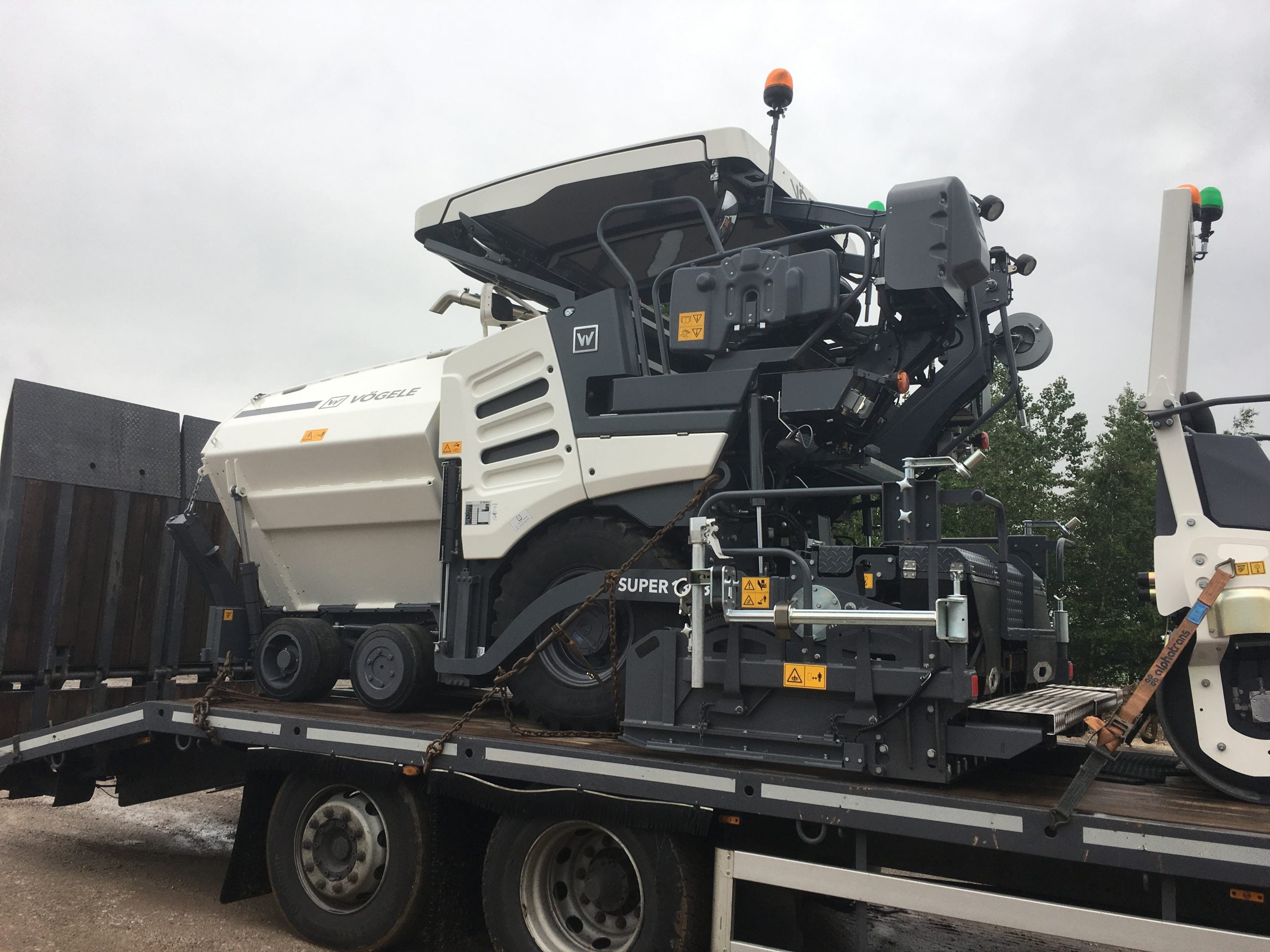

Travels swiftly under its own power
A powerful paver that‘s a comfortable drive on the road. The precise steering and handling characteristics make for the SUPER 1303-3i‘s excellent manoeuvrability, as demonstrated by its outside turning radius of just 4.9m (3.8m with Pivot Steer).
With its powerful traction drive, the machine can pave swiftly and travel on public roads at a maximum speed of 20km/h. So if its next job site is close at hand, there is no need for a low-bed trailer to transport the paver.
- Rapid transport under its own power at up to 20km/h — a feat the SUPER 1303-3 is optimally equipped for. All paving functions are automatically deactivated when “Road Travel” mode is selected. In addition, the paver comes with the approved lighting for public traffic. As a result, this paver — like all other wheeled pavers from VÖGELE — meets the basic requirement for driving on public roads.
- Maximum power transmission thanks to separate, hydraulic drives provided for the rear wheels and one set of front wheels.
- Optimum traction is assured, even on difficult terrain, by electronic traction management and an electronic differential lock acting on the drives of the rear wheels.
- Continuous ground contact is assured by a front axle which oscillates both lengthwise and crosswise. In other words, the front axle is only firmly connected to the chassis at one point; in combination with the rigidly suspended rear wheels, this creates a static 3-point support.
Extreme manœuvrability thanks to Pivot Steer: the rear inside wheel is automatically slowed down hydraulically when Pivot Steer is activated. This minimizes the outside turning radius to no more than 3.8m for positioning manœuvres and paving. The function can be activated in “Pave” and “Positioning” modes, greatly increasing the manœuvrability of the machine on confined job sites.
High-quality paving thanks to perfect material management
A continuous flow of mix is key to ensuring uninterrupted and high-quality paving. That is why we attach such importance to professional material management when designing our pavers.
All our development efforts focus on simple operation and the best possible overview for the paving team.
PaveDock Assistant from VÖGELE is an innovative solution for standardizing and simplifying communication between the paver operator and driver of the feed vehicle during the feed with mix.

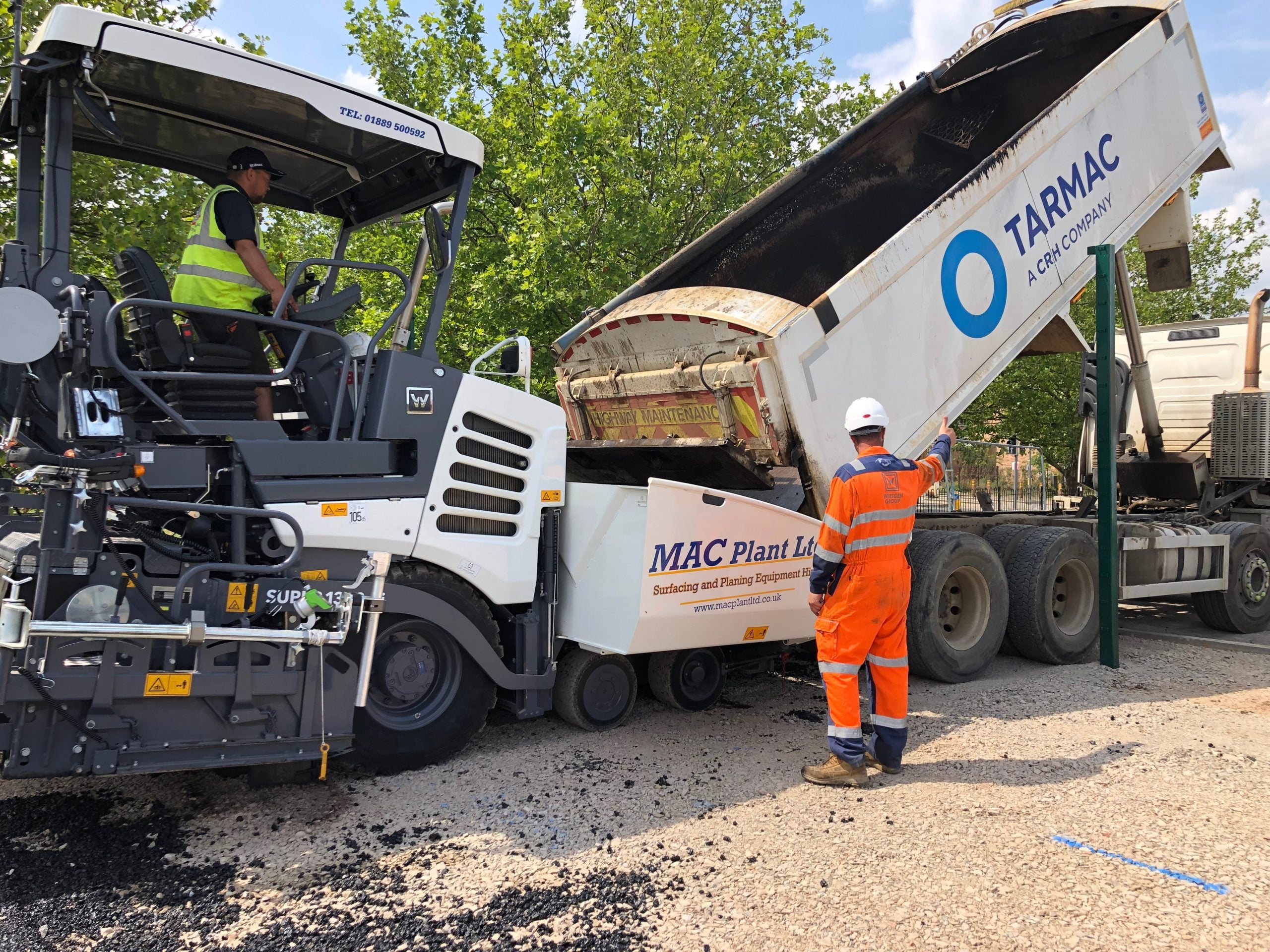

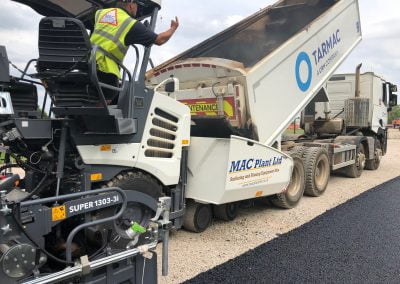

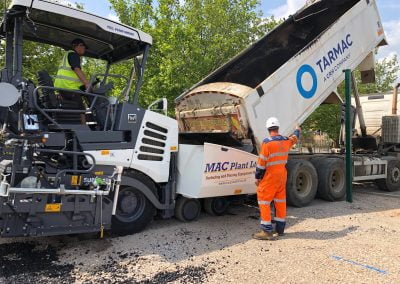

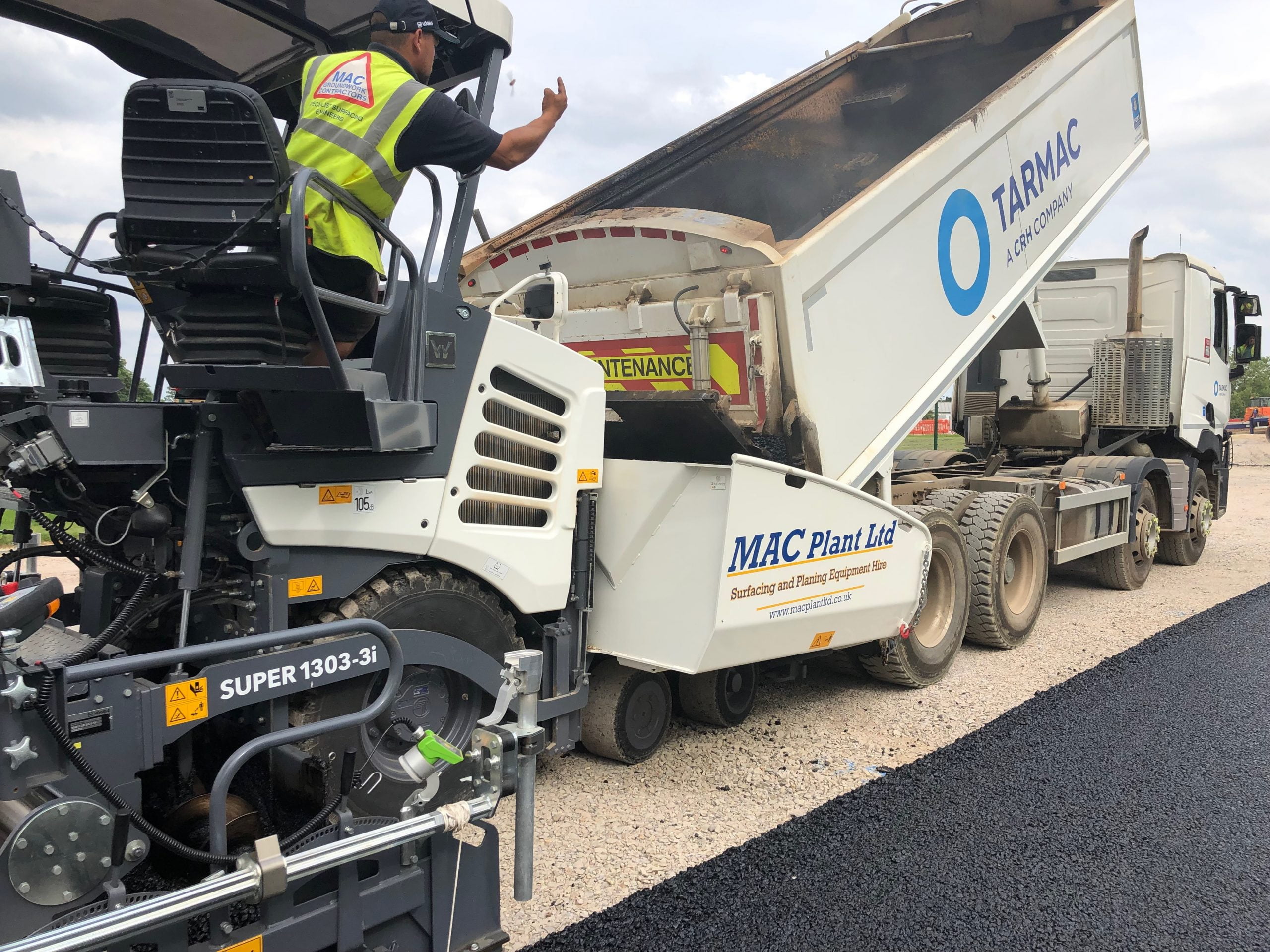

Easy and clean feeding with mix
Despite the paver‘s slim profile, its material hopper holds 10t. The hydraulic hopper front supports both feeding of the paver with mix and emptying of the material hopper. The paver comes with oscillating push-rollers to ensure the shock-free docking of feed vehicles.
Hydraulically operated hopper sides, folding separately, guarantee consistent feeding with mix even when paving in asymmetrical widths along boundaries such as walls.
- The large material hopper holding 10t is amply dimensioned so that a sufficient quantity of mix is stored at all times. There is no problem tiding over difficult situations such as paving under bridges, for instance.
- Thanks to a hydraulically operated hopper front (option), no mix is spilled when feed lorries change. Inside the material hopper the mix is directed right onto the conveyors for complete emptying. No hand work with shovels is required.
- Oscillating push-rollers allow for convenient and shock-free docking even of large feed vehicles.
Proportional control provided for conveyors and augers
The conveyance and spreading of mix in front of the screed is optimal thanks to the large conveyor tunnel, proportional control of conveyors and powerful augers. Furthermore, augers adjustable in height and folding limiting plates for the auger tunnel allow the paver to be moved on the job site without a need for conversion. This saves time and money.
- The large conveyor tunnel and powerful separate hydraulic drives for conveyors and augers allow extraordinarily high laydown rates up to 250t/h, an extraordinarily high performance for a paver in its class.
- Separate drive and control is installed for each conveyor and each auger. When operating in Automatic mode, conveyors and augers are subject to continual monitoring. Proportional control provides for a constant head of mix in front of the screed.
- Folding limiting plates for the auger tunnel are provided to quickly set up the machine for paving within the range of 2.6m and 4.5m. There is no need for conversion.
- The height of the augers is infinitely variable by 13cm for uniform spreading of mix across the entire pave width. Hydraulic auger height adjustment is available as an option.
PaveDock Assistant: The communication system
A constant feed of material is a fundamental prerequisite for high-quality paving and perfect evenness.
PaveDock Assistant is the communication system between the paver operator and the driver of the feed vehicle. It allows particularly fast and reliable transfer of mix to the paver.
The core element of the PaveDock Assistant are the signal lights on the paver and the associated control elements on the paver operator‘s ErgoPlus 3 console.
The paver has two sets of signal lights, mounted on the right and left of the hardtop. With these lights, the paver operator can give the driver of the feed vehicle unmistakable signals, indicating what needs to be done (e.g. reverse, stop, dump mix). Having two lights, each in an elevated position, ensures that all signals are clearly visible to the feed vehicle driver from all angles of approach.
AutoSet Basic Repositioning function
AutoSet Basic is especially helpful when the machine frequently has to be moved on the job site.
Simply pressing the “Execute” button raises the augers and the hydraulically operated hopper front to the uppermost positions. The screed is brought into its transport position. The conveyors are temporarily reversed, preventing mix falling to the ground when the paver travels to the next work section on site.
Once the paver has been repositioned, pressing the “Execute” button again returns all systems to the previously stored working position.
This ensures that no settings are lost when changing from paving to repositioning or transport. It also effectively prevents any damage to the machine.
The ErgoPlus 3 operating concept
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. Therefore, the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.
ErgoPlus 3 encompasses the operator’s stand, the paver operator’s console and screed consoles and Niveltronic Plus, the System for Automated Grade and Slope Control.
The paver operator‘s ErgoPlus 3 console
The paver operator‘s console is extremely clear and has been designed according to practical principles. All functions are combined into logical groups, so that the operator finds each function exactly where he would expect it to be.
On the ErgoPlus 3 console, all push-buttons are easily identifiable by touch even when wearing work gloves. Once a button is pressed, off you go thanks to the “Touch and Work” principle. This means that a function is executed directly — without a need to confirm. As darkness falls, the paver operator‘s console is back-lit automatically, as in a car. This makes night-time work easy and relaxed.
Lighting for travelling on public roads
As a standard feature, all VÖGELE wheeled pavers are equipped with a lighting system approved throughout Europe for travelling on public roads. The push-buttons for indicating direction, warning lights, dipped lights and full beam are clearly arranged side by side on the paver operator‘s console.
AutoSet Basic Repositioning function (option)
With the AutoSet Basic Repositioning function, the paver is quickly and safely prepared for a move on the job site at the push of a button. After the move, all paver components are reset to their previous working positions, simply by pressing the button again. This ensures that no settings are lost when changing between “Pave” and “Job Site” modes. AutoSet Basic also effectively prevents damage during transport.
AutoSet Basic Repositioning function (option)
With the AutoSet Basic Repositioning function, the paver is quickly and safely prepared for a move on the job site at the push of a button. After the move, all paver components are reset to their previous working positions, simply by pressing the button again. This ensures that no settings are lost when changing between “Pave” and “Job Site” modes. AutoSet Basic also effectively prevents damage during transport.
Choice of operating modes for the paver
All the main paving and machine functions can be controlled directly by individual push-buttons on the paver operator’s ErgoPlus 3 console. By pressing the arrow buttons, up or down, the operator changes modes in the following order: “Neutral“, “Job Site“, “Positioning“ and “Pave“. An LED indicates the mode selected. When leaving “Pave“ mode, a smart memory feature stores the last settings for paver functions so that, when resuming work after a relocation of the paver on the job site, these settings are restored automatically.
Safe operation during the night
Glarefree backlighting comes on automatically as darkness sets in so that the paver operator can also work safely on night-time jobs.
Display of the paver operator‘s console
The high-contrast colour display provides for brilliant readability even in poor lighting conditions. Vital information is shown on menu level 1, such as the positions of the screed tow point rams or the material level in the conveyor tunnel. Further paver functions such as speeds of tamper and vibrators or feed rate of the augers can easily be set up via the display, too. And the display gives access to machine-related information such as fuel consumption or service hours.
PaveDock Assistant (option)
With the PaveDock Assistant signal lights, the paver operator can give the driver of the feed vehicle unmistakable signals, indicating what needs to be done (e.g. reverse, stop, dump mix). The lights are conveniently activated directly from the paver operator’s ErgoPlus 3 console.
Choice of engine speed ranges
For the diesel engine, there is a choice of three modes to select from: MIN, ECO and MAX. To switch modes for engine rpm, all the operator needs to do is press the arrow buttons, up or down. In ECO mode, the engine delivers sufficient power for a great number of paving applications. Operating in ECO mode reduces noise emissions and fuel consumption considerably.
Screed Assist (option)
This button switches Screed Assist on (LED lights up) or off. Screed Assist pressure and balance can be set via the display. Screed Assist is active only when the screed is floating.
The ErgoPlus 3 screed console
The screed is crucial for pavement quality. Therefore, easy and positive handling of all screed functions is of the utmost importance for high-quality road construction. With ErgoPlus 3, the screed operator has the paving process at his fingertips. All functions are easily comprehensible and all controls are clearly arranged.
The screed console
The screed console is designed in keeping with the conditions prevailing on the job site. Push-buttons are provided for the frequently used functions operated from the screed console. These are watertight and enclosed in palpably raised rings, so that they are identifiable blindfold simply by touch even when wearing work gloves. Important paver and screed data can be called up and adjusted from the screed console, too.
The display of the screed console
The display of the screed console allows the screed operator to control and monitor both the left and the right side of the screed. Machine-related parameters such as tamper speed or conveyor speed can be adjusted conveniently via the display panel of the screed console. The clear menu structure, combined with easily understandable, self-explanatory symbols neutral in language, makes operating the display panel both simple and safe.
Crown adjustment at the press of a button
The crown can be conveniently adjusted at the press of a button on the screed operator‘s console. When pressing the “plus” or “minus” keys, the set crown value is shown on the display.
Ergonomic screed width control in two speeds
The screed width can be effortlessly adjusted by means of the SmartWheel.
VÖGELE Niveltronic Plus
Niveltronic Plus, the System for Automated Grade and Slope Control, is an in-house development by JOSEPH VÖGELE AG based on many years of experience in grade and slope control technology. Easy operation, precision and reliability are its hallmarks, ensuring perfect mastery of all grade and slope control jobs.
This fully integrated system is optimally adapted to the machine technology of the SUPER pavers. All wiring and connections, for instance, are integrated into the tractor unit and screed, effectively eliminating all risk of damage to these components.
VÖGELE naturally offer a particularly large and practical selection of sensors permitting versatile use of the Niveltronic Plus system. Whether car parks, roundabouts or highways need to be built or rehabilitated, VÖGELE offer the right sensor for every job site situation.
Sensors can be changed quickly and easily, for Niveltronic Plus automatically detects which sensor is connected, thus simplifying the configuration process for the user.
The ErgoPlus 3 operator‘s stand
The comfortable operator‘s stand gives an unobstructed view of all crucial areas on the paver such as material hopper, steering guide or screed. It allows the paver operator to closely monitor the feeding of the paver with mix.
The seats swinging out to the sides and an operator‘s stand of streamlined design provide for maximum visibility of the auger tunnel, permitting the paver operator to keep an eye on the head of mix in front of the screed at all times.
Working comfort
The paver operator’s seat and console, as well as the screed consoles can now be adjusted even more easily to personal needs.
A place for everything and everything in its place
The operator‘s stand, with its streamlined design, is well organized, offering the paver operator a professional workplace. The operator’s console can be protected by a shatter-proof cover to prevent wilful damage.
Hardtop gives excellent protection
The modern hardtop made of glass fibre-reinforced polymer material shelters the operator, come rain or shine.
Consistent service concept
All “Dash 3” pavers have a consistent maintenance concept with identical service intervals.
Safe and comfortable ascent
The walkway and comfortable middle ascent on the screed ensure safe and convenient access to the operator platform.
Ergonomic screed console
The height and position of the console are easily adjusted. The high-contrast colour display can be read clearly from all angles.
AB 340 TV Extending Screed
For the SUPER 1303-3, the AB 340 TV Extending Screed is the perfect match. The screed with a basic width of 1.8m extends hydraulically up to 3.4m. Through the addition of bolt-on extensions, it builds up to a maximum width of 4.5m.
The AB 340 comes in TV version with tamper and vibrators for excellent degrees of compaction. Compacting systems are installed across the screed’s full pave width, including bolt-on extensions.
- A typical VÖGELE feature also found in the AB 340 TV Extending Screed is the powerful electric heating. The modern screed heating system provides for quick and uniform heating to operating temperature, an essential for smooth surface texture.
- The unique VÖGELE single-tube telescoping system allows screed width control, accurate to the millimetre and free from slack, up to 3.4m.
- Telescopic tubes are located in high positions, so that any contact with hot mix is positively avoided, ensuring a long service life.
- Excellent insulation of the screed plates reduces loss of heat to a minimum. Heating the screed takes a short time only, even with the engine running at minimum rpm.
- A homogeneous surface texture is achieved due to uniform heating of screed plates and tamper bars.
- The electric heating warms the screed up to its operating temperature much more quickly, even with the engine running at minimum rpm, thanks to intelligent generator management.
- In automatic operation, the screed is heated in Alternating mode, which means that only one half is heated at any one time, thus sparing the engine and saving fuel.
The screed for the SUPER 1303-3
AB 340 TV
Pave widths
Infinitely variable range from 1.8m to 3.4m
Maximum pave width through bolt-on extensions:
3.9m (2 x 25cm)
4.5m (2 x 55cm)
Smaller widths by fitting cut-off shoes down to a minimum of 75cm
Compacting systems
AB 340 TV with tamper and vibrators
Specifications
Vogele 1303-3i Wheeled Paver Specification
Power Unit
| SUPER 1303-3i | SUPER 1303-3 | |
| Engine | 4-cylinder diesel engine | 4-cylinder diesel engine |
| Manufacturer | Deutz | Deutz |
| Type | TCD 3.6L4 | TCD 3.6L4 |
| Emissions Standard | EU Stage 4, US EPA Tier 4f | EU Stage 3a, US EPA Tier 3 |
|
Output Nominal ECO Mode |
– 74.4kW / 2,000rpm 68.7kW / 1,600rpm |
– 74.4kW / 2,000rpm 68.7kW / 1,600rpm |
| Fuel Tank | 100 litres | 100 litres |
Undercarriage
|
Front Wheels Tyre Equipment |
4, mounted on bogies solid tyres |
| Tyre Size | 460 / 250 – 310mm |
| Rear Wheels | 2, pneumatic tyres |
| Tyre Size | 365 / 80 R 20 |
|
Traction Drive Standard |
separate hydraulic drive provided for each wheel 2 rear wheels and 2 front wheels (6×4) |
|
Speeds Operating Travel |
up to 30m/min up to 20km/h |
| Turning Radius | 3.8m (with “Pivot Steer”) |
| Power Steering | hydraulic |
| Service Brake | hydrostatic |
| Parking Brake | spring-loaded multiple-disc brake, maintenance-free |
| Auxiliary Brake | hydraulic |
Material Hopper
|
Hopper Capacity Width |
10 tonnes 3,350mm |
| Feed Height | 572mm (bottom of material hopper) |
| Push-Rollers | oscillating, displaceable forwards by 80mm |
Conveyors and Augers
|
Conveyors Drive Speed |
2, with replaceable feeder bars, conveyor movement reversible for a short time separate hydraulic drive provided for each conveyor up to 25m/min |
|
Augers Diameter Drive Speed Height Standard Option |
2, with replaceable auger blades, auger rotation reversible 300mm separate hydraulic drive provided for each auger up to 80 rpm, infinitely variable (manual or automatic)
mechanical by 13cm infinitely variable hydraulic by 13cm infinitely variable |
| Lubrication | service points for greasing |
Screed
|
AB 340 (TV) Basic Width Infinitely Variable Range Maximum Width (TV) Minimum Width Cut-off Shoe(s) |
1.8m 1.8m up to 3.4 4.5m 0.75m by cut-off shoes, 2 x 52.5cm |
| Compacting System(s) | TV |
| Layer Thickness | up to 25cm |
|
Heating Power Supply |
electric by heating rods three-phase A.C. generator |

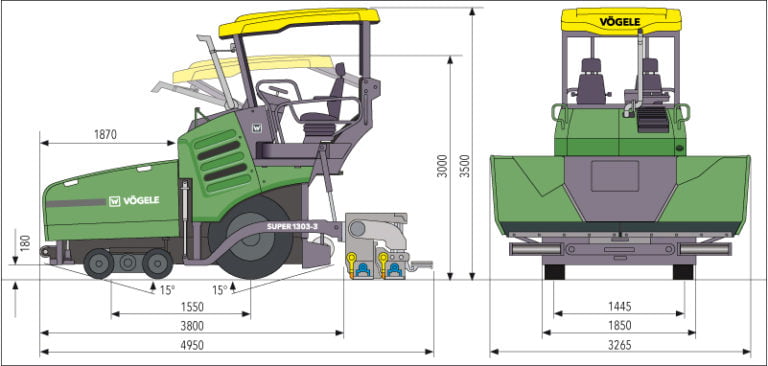

Dimensions and Weights
|
Length
|
tractor unit and screed in transport position 4.95m |
|
Weight
|
Tractor unit with AB 340 screed in TV version – pave widths up to 3.4m: 10.2t – pave widths up to 4.5m: 11t |
